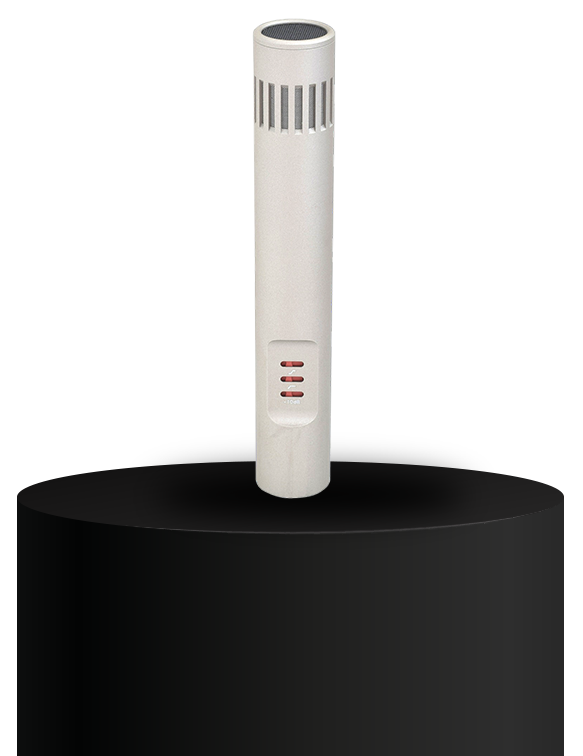

A mini microphone amplifier makes sound powerful from 4KHz to 20kHz. 48V phantom power used in indoor and out door. With broad balanced range of frequency response. The gold plated XLR link makes audio frequency current with ideal transmission.
Temperature: 29°C
Relative Humidity: 60%
Pressure: 102kPa
Ambient noise: ≤32dBA
Temperature: 29°C
Relative Humidity: 60%
Pressure: 102kPa
Ambient noise: ≤32dBA
Element: Back Electret Condenser
Frequency response: 30Hz-18KHz (±3dB)
Sensitivity (48V/105V): -33dB±3dB(1dB=1V/Pa at 1KHz)
Output impedance: 600Ω ±20% (at 1KHz)
Max input SPL: 130dB/115dB (T.H.D≤1% at 1KHz)
Signal to noise ratio: 72dB (1KHz at 1Pa) (A-Weighted)
Polar pattern: Hyper-cardioid
Equivalent noise level: ≤25dBa
Power requirements: 48V DC/1.5V AA/UM3.2mA
Switch: Adjustable
Weight: 92.5g (Without accessories)
Body size: ǿ25×150mm
Output interface: XLRM
